Streamline your setup woes with our trailer breakaway kit. No more separate mounting headaches. Our integrated unit combines a powerful LiFePO4 battery with a responsive brake controller that simplifies the installation process, delivering unparalleled convenience and peace of mind to your towing experience.

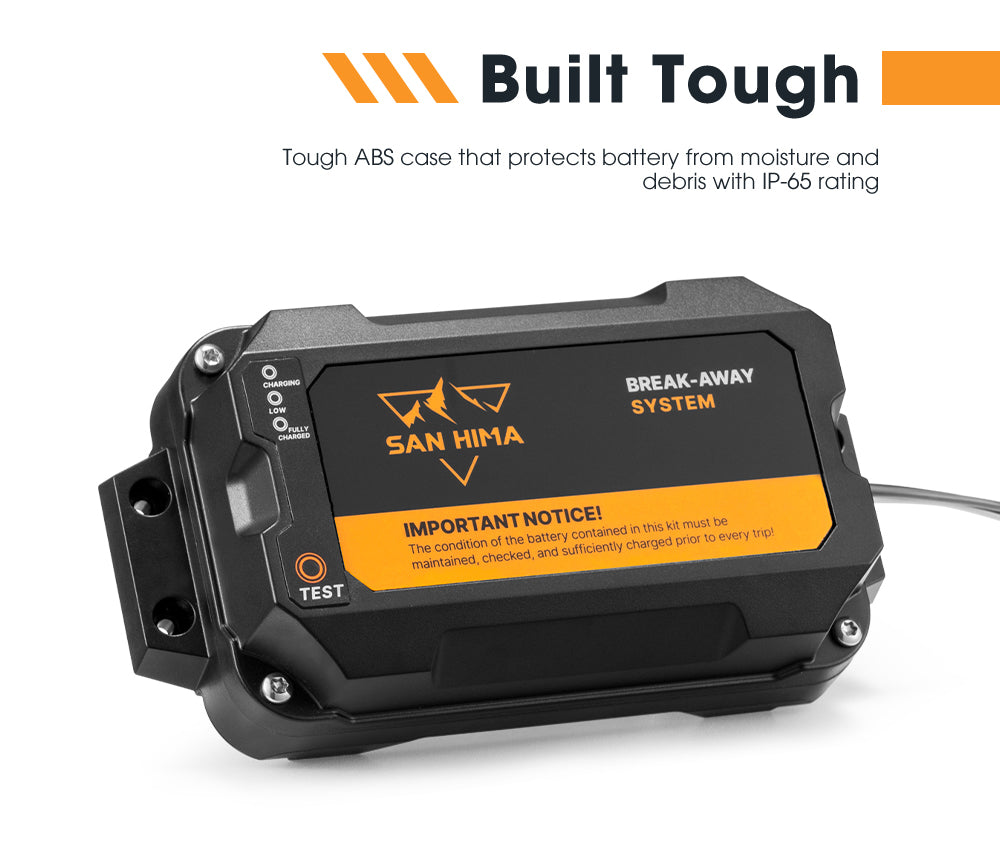

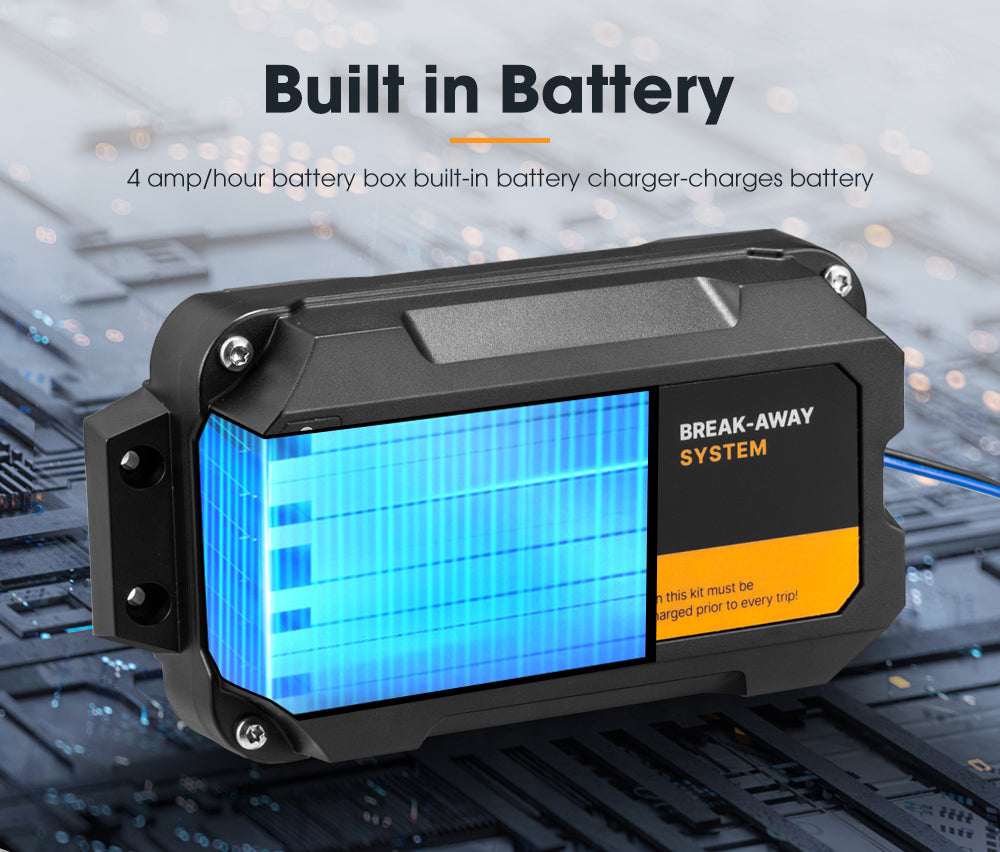

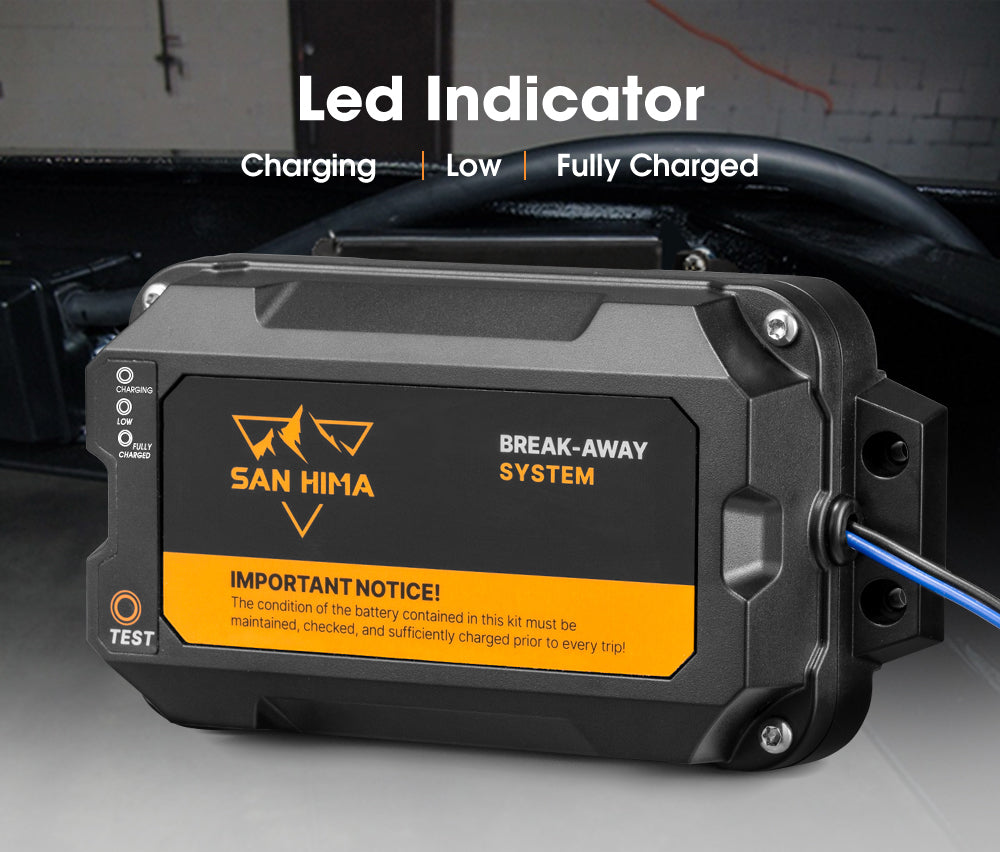

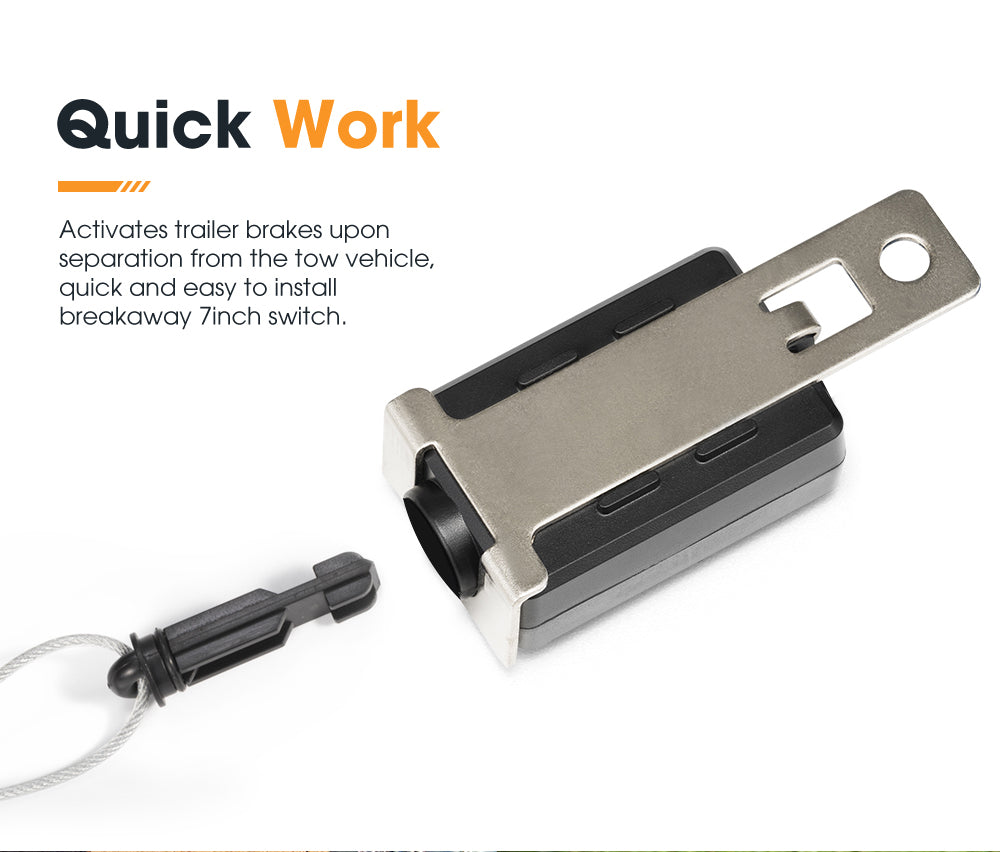

Our push-to-test battery case, equipped with LED indicators, instantly indicating if your battery is charged to perfection. The built-in LiFePO4 battery features a longer lifespan and a lower self-discharge rate, while our trusty BMS stands guard, shielding it from overcharge and over-discharge. Crafted with a tough ABS housing and fortified by IP-65 protection, it means business. It is suitable for trailers with up to 2 axles, offering rapid activation to slam the brakes in case of unexpected separations, ensuring your trailer stays under control.

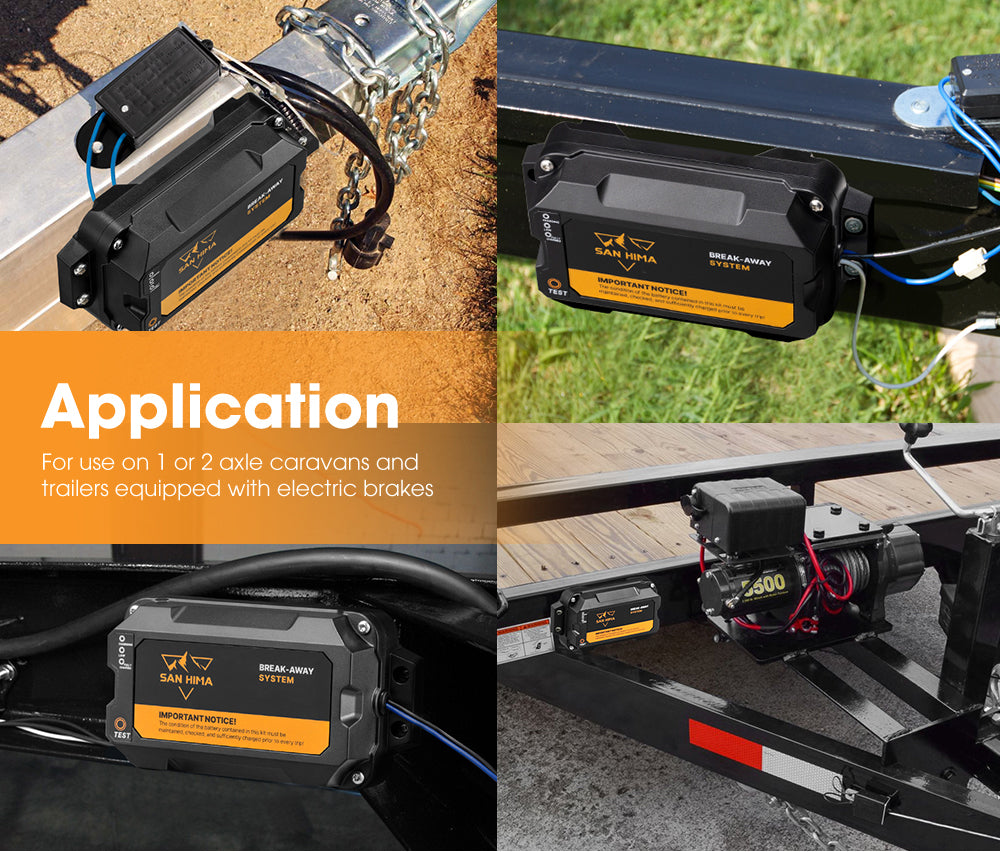

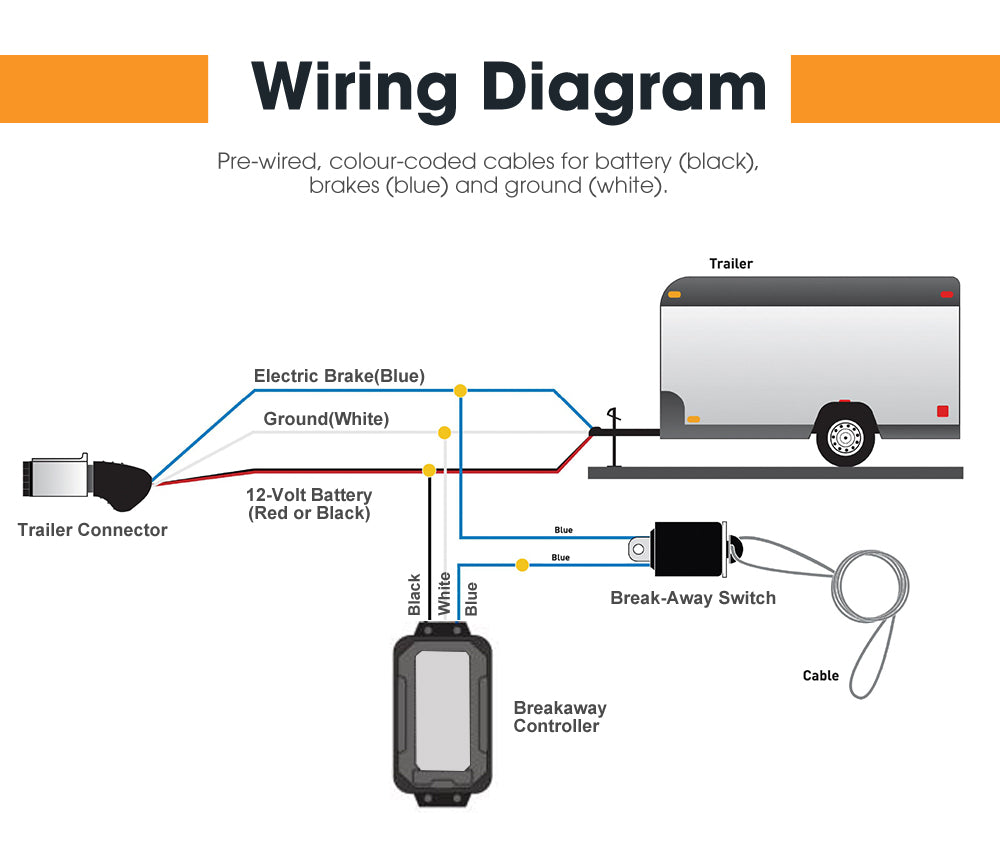

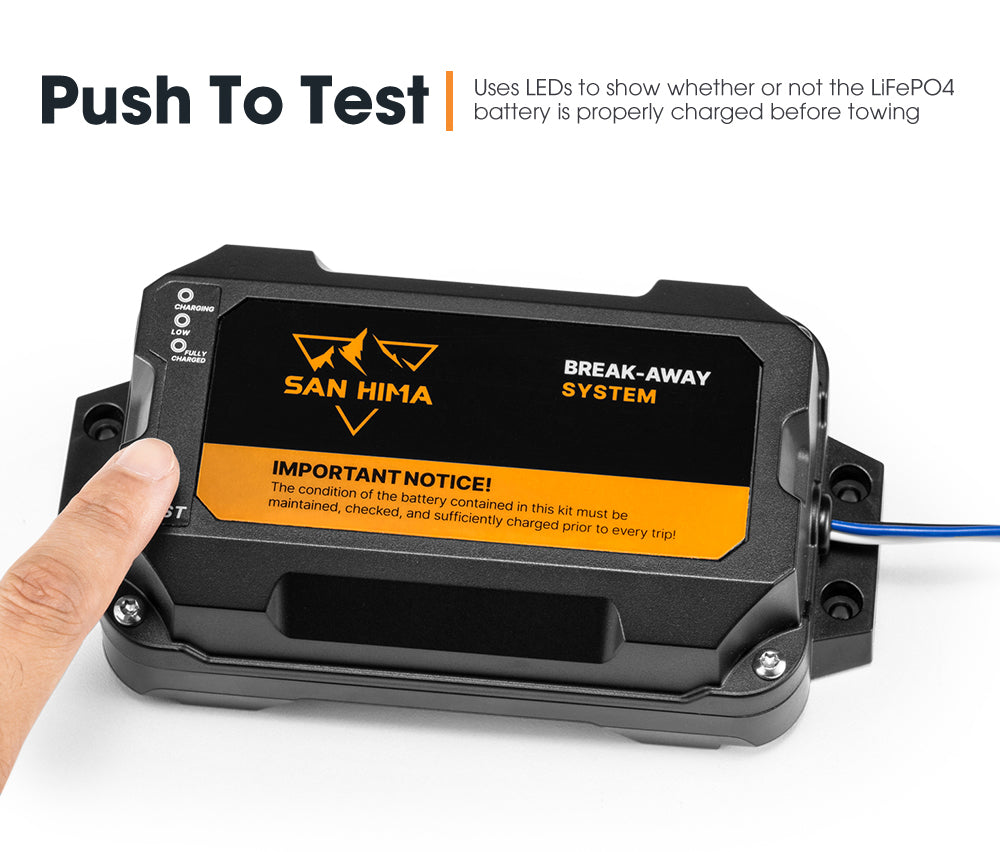

Whatever you're towing, rest assured, San Hima trailer breakaway kit will halt your trailer's escape with precision.<br /><b style='margin-top: 15px; display: block;'>Features</b><ul><li>Simplified Assembly: Integrated design eliminates separate mounting and wiring of battery and controller. Enjoy an easy setup process, and organized trailer tongue.</li><li>LiFePO4 Battery Inside: Lighter weight, longer lifespan, and lower self-discharge rate compared to AGM. The BMS safeguards against overcharge and over-discharge.</li><li>Wide Compatibility: Our trailer brake controller is suitable for 1 or 2 axle caravans and trailers with electric brakes, providing you with versatile options.</li><li>Instant Brake Engagement: San Hima's trailer brake controller kit activates the brakes immediately upon separation, providing swift response to prevent accidents.</li><li>Push to Test: Effortlessly check the charge status of the LiFePO4 battery before towing by simply pressing the test button, with LEDs indicating the results.</li><li>Effortless Wiring: This breakaway kit includes pre-wired, color-coded cables for battery (black), brakes (blue), and ground (white), making wiring hassle-free.</li><li>Built to Last: Designed tough, this kit features an ABS case that protects the battery from moisture and debris, with an IP-65 rating for added durability.</li></ul>
<table border="0">
<tbody>
<tr>
<td>Nominal Input System Voltage:</td><td>12.8V</td>
</tr>
<tr>
<td>Output Voltage:</td><td>10V~14.6V</td>
</tr>
<tr>
<td>Output Current:</td><td>Max.10A</td>
</tr>
<tr>
<td>Input Current:</td><td><3A</td>
</tr>
<tr>
<td>Input Voltage:</td><td><16V</td>
</tr>
<tr>
<td>Battery Type:</td><td>LiFePO4</td>
</tr>
<tr>
<td>Battery Capacity:</td><td>4Ah</td>
</tr>
<tr>
<td>Input Standby Current:</td><td><10mA</td>
</tr>
<tr>
<td>Self-consumption:</td><td><100uA</td>
</tr>
<tr>
<td>Wire Gauge:</td><td>16AWG</td>
</tr>
<tr>
<td>Waterproof:</td><td>IP-65</td>
</tr>
<tr>
<td>Operating Temperature:</td><td>-20℃~60℃</td>
</tr>
<tr>

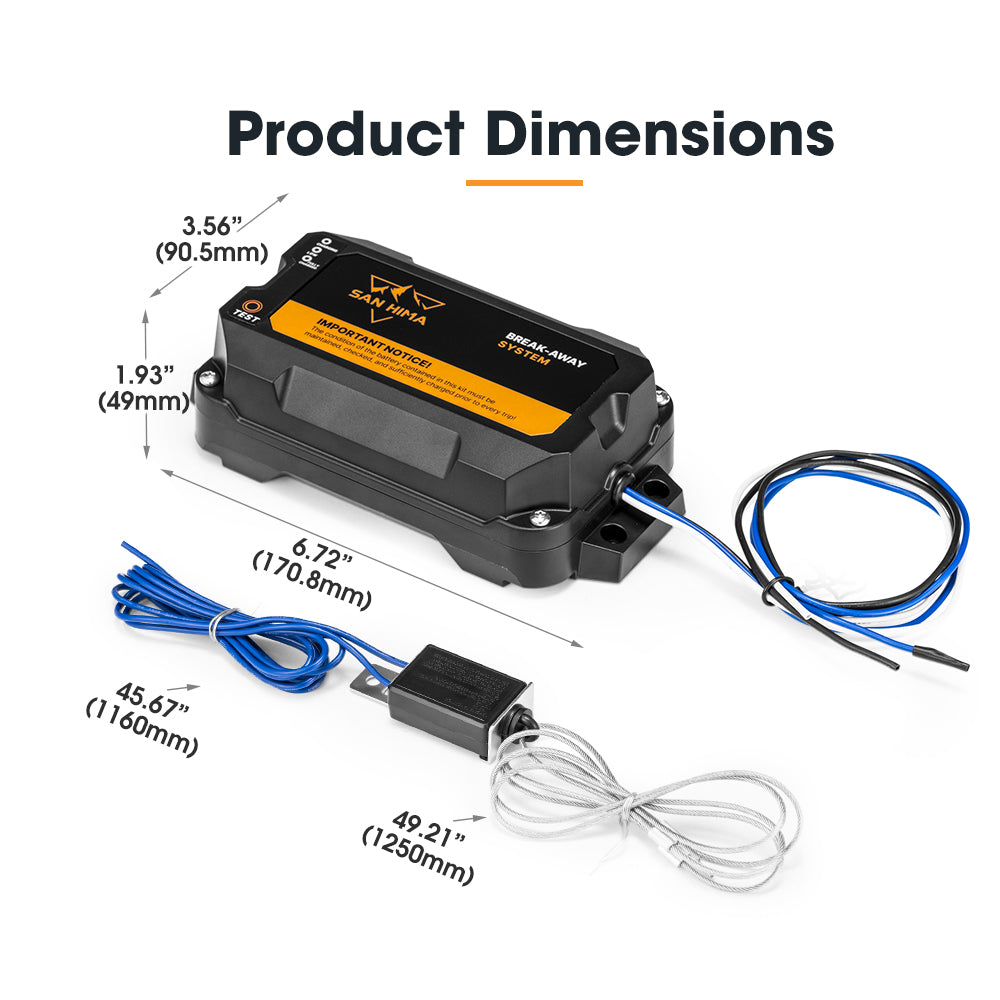

<td>Package Size:</td><td>7.48" x 5.91" x 2.56"</td>
</tr>
<tr>
<td>Package Weight:</td><td>1.87 lbs</td>
</tr>
</tbody>
</table>

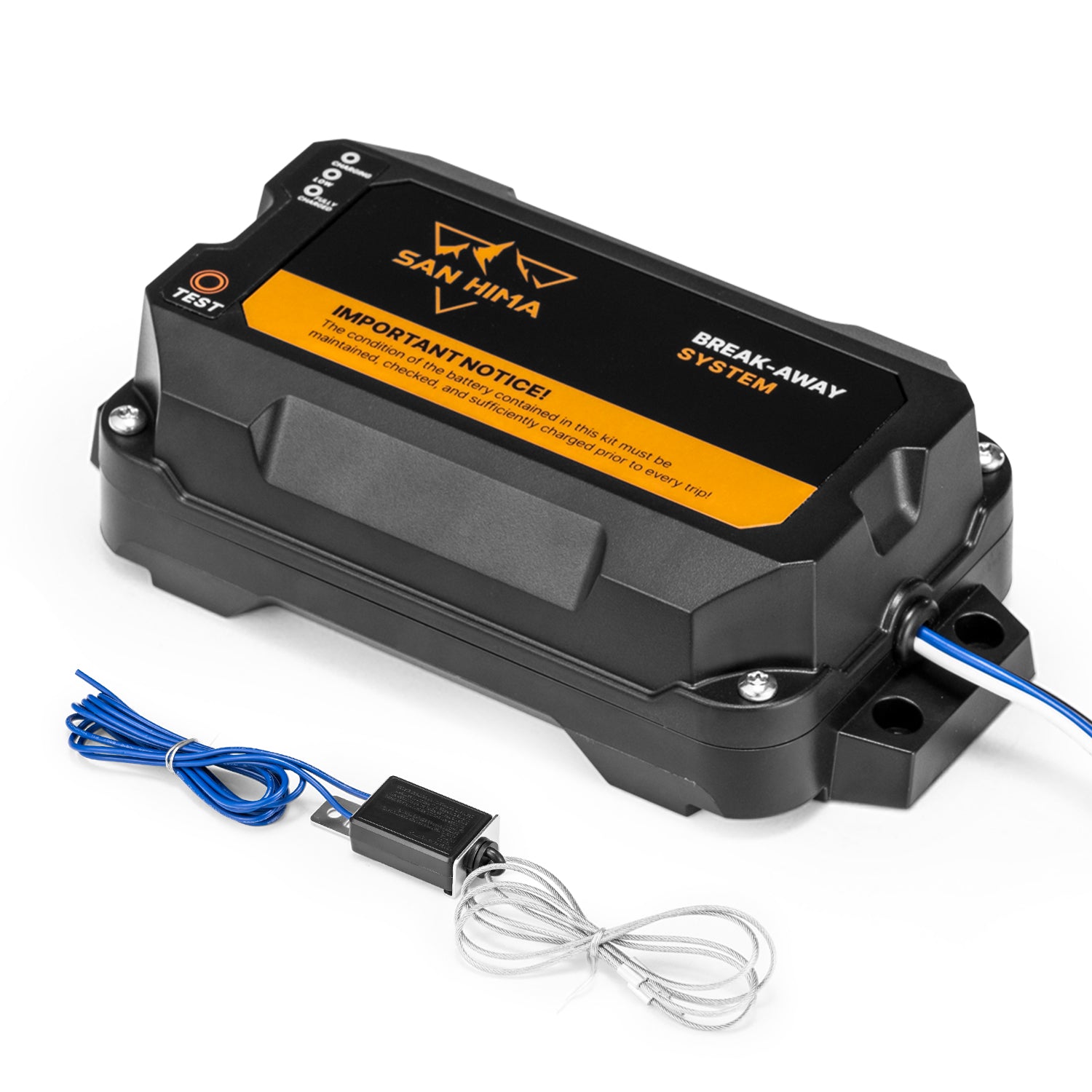

<ul><li>1 x San Hima Trailer Brake Controller</li><li>1 x Switch</li><li>1 x User Manual</li></ul>3 Years Warranty<p><a href='https://cdn.shopify.com/s/files/1/0061/7775/1143/files/SH-VABS003-UFA_SH-TBC-LITH_User_Manual_V2.0.pdf?v=1723778722' target='_blank'><img src='https://cdn.shopify.com/s/files/1/0271/4340/5666/files/01.png' style='max-width: 80px;' /></a></p>
